ASTRA 3 Axis
ASTRA 3 Axis

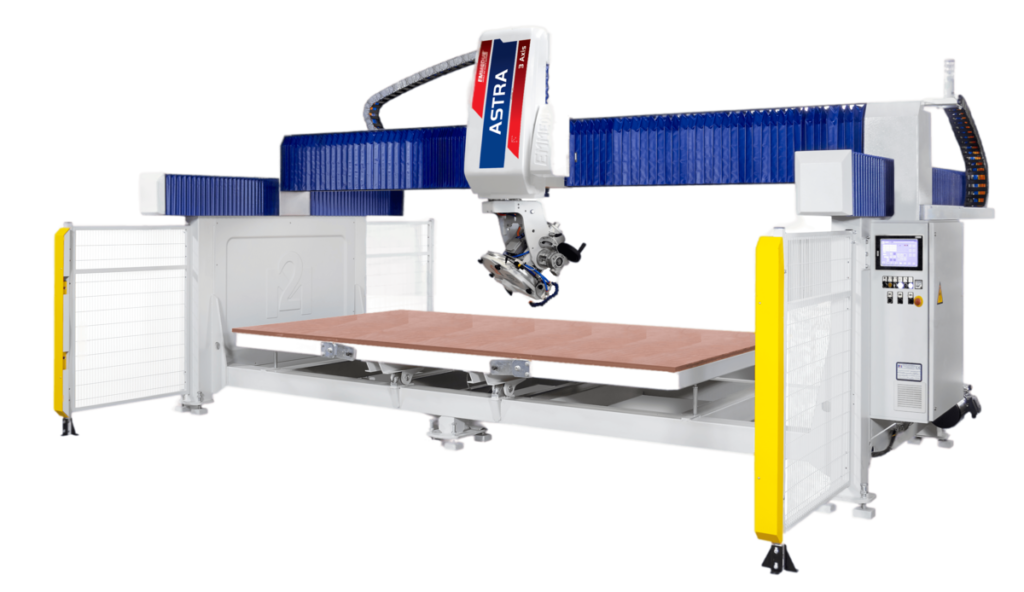

THE MOST COMPACT AND DYNAMIC BRIDGE SAW IN ITS CATEGORY.
Blade Diameter: mm
500
Power: HP
18
Fresatrice automatica versatile, precisa, affidabile e facile da utilizzare.
Details
Bridge saw machine structure and work table made of hot galvanized dipped electro-welded steel that guarantees high water resistance.
X / Y / Z axis movements on slideways with ball-bearing guide blocks protected by bellows.
The blade motor has Hp18 – kW 13.2 power, can reach a maximum speed of 3000 Rpm with inverter, cutting thicknesses up to 145 mm. with disc Ø 500 mm. (200mm. with disc Ø 625 mm. Optional)
Manual rotation head in three positions, 0° - 90° - 180°, manual tilting head from 0° to 90° with handweel.
Panel control touch screen 10” with easy to use interface.
The optional tilting work table with hydraulic pump, promotes slab loading, speeding up the production process.
Astra 3 is ideal for indoor and outdoor designs such as kitchen counters, bathroom counters, capitals, tables, stairs, floors and funerary art.
Details Gallery
Manual tilting blade 0° ÷ 90° by hand weel
Manual rotating head 0° - 90° - 180°
Hydraulic tilting work table
Hand remote control
